Showing 1–24 of 134 results

SORT BY

Cores

Quick View

Truck

5859R4H

Cores

Kenworth

5859R4H

Manufacturer Kenworth
Model(s) N/A

Comments

Kenworth Core

Heavy Bottom Header Required

CORE DIMENSIONS

Height (tank-to-tank) 35.00"

Width 41.25"
Depth 2.81"
Inlet N/A
Outlet N/A

Truck

Cores

Kenworth

5859R4N

Manufacturer Kenworth
Model(s) N/A

Comments

Kenworth Core

Heavy Bottom Header Required

CORE DIMENSIONS

Height (tank-to-tank) 35.00"

Width 41.25"
Depth 2.37"
Inlet N/A
Outlet N/A

Truck

Cores

Peterbilt

6213HER4

Manufacturer Peterbilt
Model(s) N/A

Comments

Peterbilt Core
2.81 Overhang on Top Header
1.50″ Overhang on Bottom Header

“””

CORE DIMENSIONS

Height (tank-to-tank) 37.50"

Width 38.50"
Depth 2.81"
Inlet N/A
Outlet N/A

Truck

Cores

Peterbilt

6214HER5

Manufacturer Peterbilt
Model(s) N/A

Comments

Peterbilt Core
3.50″ Overhang on Top Header
1.50″ Overhang on Bottom Header

CORE DIMENSIONS

Height (tank-to-tank) 37.50"

Width 38.50"
Depth 3.50"
Inlet N/A
Outlet N/A

Truck

Cores

Mack

6983R4

Manufacturer Mack
Model(s) N/A

Comments

Mack Core
Corner Supports

CORE DIMENSIONS

Height (tank-to-tank) 43.25"

Width 30.50"
Depth 2.625"
Inlet N/A
Outlet N/A

Truck

Cores

Mack

7173R4N

Manufacturer Mack
Model(s) N/A

Comments

Mack Core
R Model Mack
Heavy Bottom Header

CORE DIMENSIONS

Height (tank-to-tank) 29.00"

Width 34.37"
Depth 2.37"
Inlet N/A
Outlet N/A

Truck

Cores

Mack

7236R4

Manufacturer Mack
Model(s) N/A

Comments

Mack Core

CORE DIMENSIONS

Height (tank-to-tank) 29.375"

Width 40.00"
Depth 2.62"
Inlet N/A
Outlet N/A

Truck

Cores

Kenworth

9479R6N

Manufacturer Kenworth
Model(s) N/A

Comments

CORE DIMENSIONS

Height (tank-to-tank) 35.00"

Width 41.25"
Depth 3.43"
Inlet N/A
Outlet N/A

Truck

Cores

Ford

9550LF

Manufacturer Ford
Model(s) N/A

Comments

Ford Low Flow Core

CORE DIMENSIONS

Height (tank-to-tank) 38.00"

Width 27.00"
Depth 2.62"
Inlet N/A
Outlet N/A

Truck

Cores

International

9553R3

Manufacturer International
Model(s) N/A

Comments

International Core
2.50 Overhang on Top &amp

CORE DIMENSIONS

Height (tank-to-tank) 29.50"

Width 22.50"
Depth 2.00"
Inlet N/A
Outlet N/A

Truck

Cores

International

9553R4

Manufacturer International
Model(s) N/A

Comments

International Core
2.50 Overhang on Top and Bottom Header
Corner Supports

“

CORE DIMENSIONS

Height (tank-to-tank) 29.50"

Width 22.50"
Depth 2.62"
Inlet N/A
Outlet N/A

Truck

Cores

International

9560LF

Manufacturer International
Model(s) N/A

Comments

International Core
1.62 Overhang on Top and Bottom Header
Corner Supports

*core is available with and without baffle, please specify upon build*

“

CORE DIMENSIONS

Height (tank-to-tank) 40.00"

Width 35.75"
Depth 2.62"
Inlet N/A
Outlet N/A

Truck

Cores

GMC

9561R3

Manufacturer GMC
Model(s) N/A

Comments

GM Light Truck Core

CORE DIMENSIONS

Height (tank-to-tank) 28.38"

Width 19.25"
Depth 2.00"
Inlet N/A
Outlet N/A

Truck

Cores

YALE

9562R4

Manufacturer YALE
Model(s) N/A

Comments

Radiator Core

CORE DIMENSIONS

Height (tank-to-tank) 40.00"

Width 28.37"
Depth 2.62"
Inlet N/A
Outlet N/A

Truck

Cores

International

9563LFR4

Manufacturer International
Model(s) N/A

Comments

International Core
Corner Supports
Low Flow Core

CORE DIMENSIONS

Height (tank-to-tank) 42.75"

Width 28.50"
Depth 2.62"
Inlet N/A
Outlet N/A

Truck

Cores

International

9563R3

Manufacturer International
Model(s) N/A

Comments

International Core
Corner Supports

CORE DIMENSIONS

Height (tank-to-tank) 42.75"

Width 28.50"
Depth 2.00"
Inlet N/A
Outlet N/A

Truck

Cores

International

9563R4

Manufacturer International
Model(s) N/A

Comments

International Core
Corner Supports

CORE DIMENSIONS

Height (tank-to-tank) 42.75"

Width 28.50"
Depth 2.62"
Inlet N/A
Outlet N/A

Truck

Cores

YALE

9564R4

Manufacturer YALE
Model(s) N/A

Comments

Radiator Core

CORE DIMENSIONS

Height (tank-to-tank) 42.75"

Width 28.50"
Depth 2.62"
Inlet N/A
Outlet N/A

Truck

Cores

YALE

9564R5

Manufacturer YALE
Model(s) N/A

Comments

Radiator Core

CORE DIMENSIONS

Height (tank-to-tank) 42.75"

Width 28.50"
Depth 3.37"
Inlet N/A
Outlet N/A

Truck

Cores

Kenworth

9566R3

Manufacturer Kenworth
Model(s) N/A

Comments

Includes: 2 Preformed Gaskets, Nuts, Bolts, and Washers;

CORE DIMENSIONS

Height (tank-to-tank) 40.00"

Width 28.62"
Depth 2.00"
Inlet N/A
Outlet N/A

Truck

Cores

Kenworth

9566R3H

Manufacturer Kenworth
Model(s) N/A

Comments

Includes: 2 Preformed Gaskets, Nuts, Bolts, and Washers

CORE DIMENSIONS

Height (tank-to-tank) 40.00"

Width 28.62"
Depth 2.09"
Inlet N/A
Outlet N/A

Truck

Cores

Kenworth

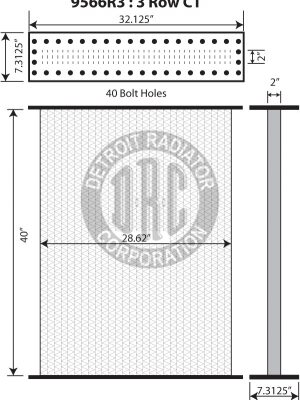

9566R3LF

Manufacturer Kenworth
Model(s) N/A

Comments

Includes: 2 Preformed Gaskets, Nuts, Bolts, and Washers;

CORE DIMENSIONS

Height (tank-to-tank) 40.00"

Width 28.62"
Depth 2.00"
Inlet N/A
Outlet N/A

Truck

Cores

Kenworth

9566R4

Manufacturer Kenworth
Model(s) N/A

Comments

Includes: 2 Preformed Gaskets, Nuts, Bolts, and Washers

CORE DIMENSIONS

Height (tank-to-tank) 40.00"

Width 28.62"
Depth 2.62"
Inlet N/A
Outlet N/A

Truck

Cores

Kenworth

9566R4H

Manufacturer Kenworth
Model(s) N/A

Comments

Includes: 2 Preformed Gaskets, Nuts, Bolts, and Washers

CORE DIMENSIONS

Height (tank-to-tank) 40.00"

Width 28.62"
Depth 2.81"
Inlet N/A
Outlet N/A
